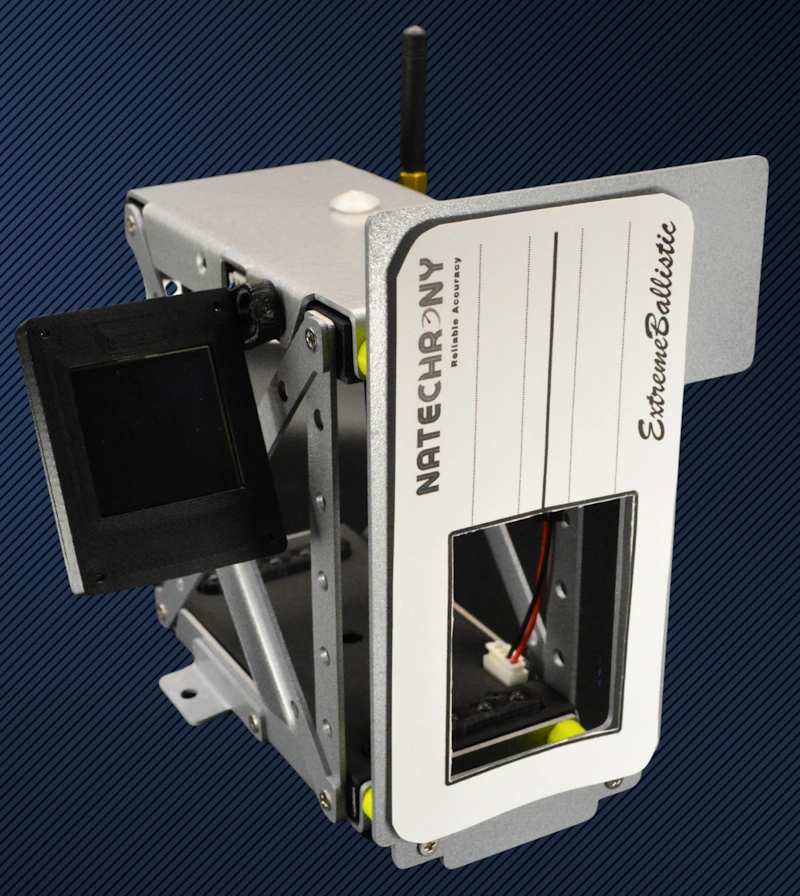

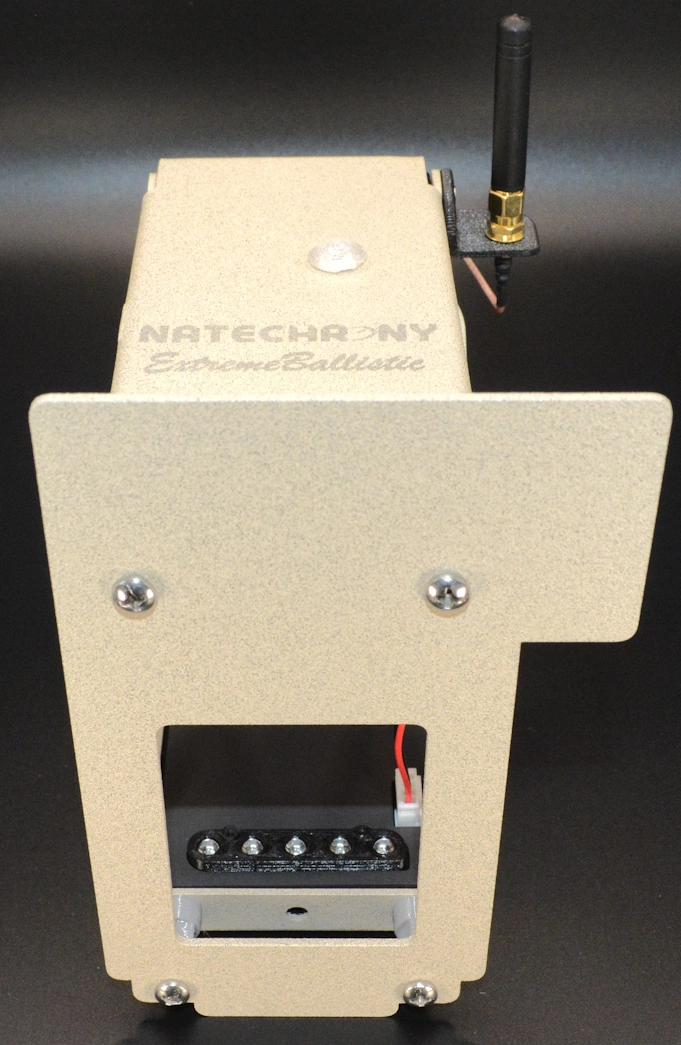

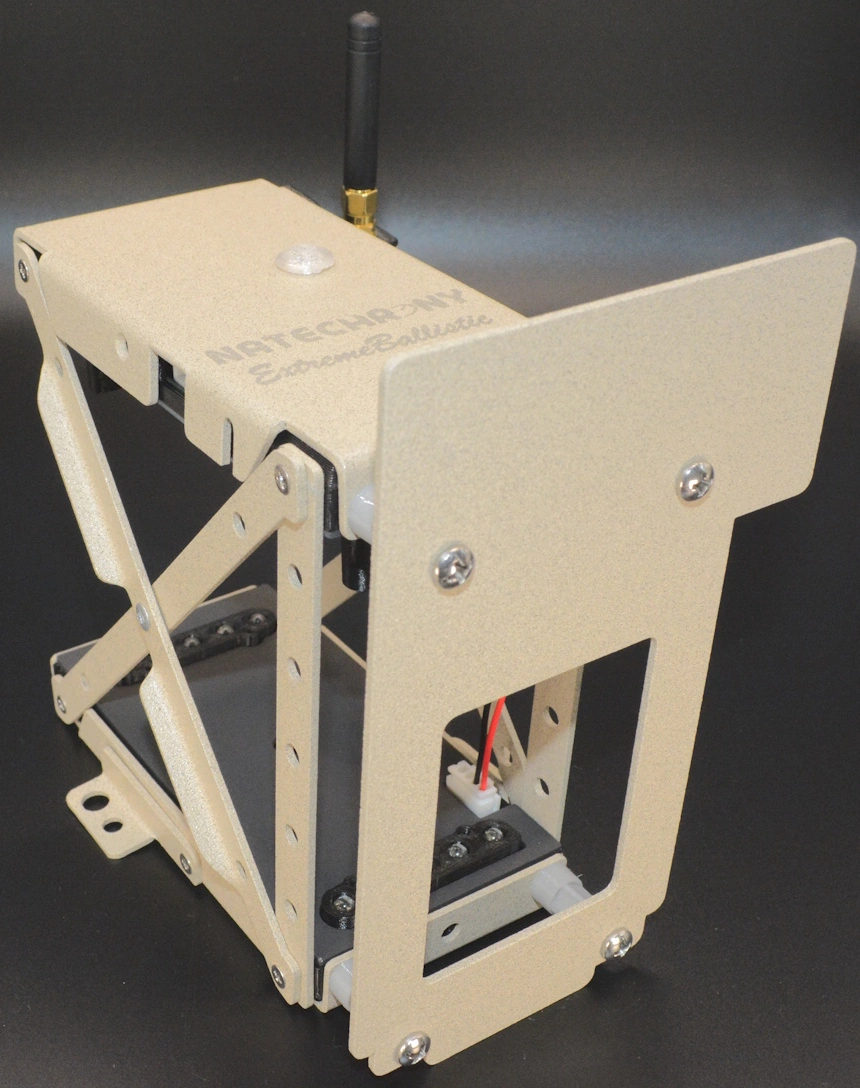

The NateChrony ExtremeBallistic
The first bulletproof* standalone chronograph that has been designed and built from the ground up for shooters. It offers the same incredible accuracy as all NateChrony Chronographs, the market leading feature set and software, in a durable, lightweight and compact package.
Perfect for any projectile whether its from an air rifle, CO2, powder burner, pistol, or airsoft.
With its inbuilt environmental sensor (pressure and humidity) and bulletproof durability, it can be paired with another ExtremeBallistic unit or NateChrony SteadyShot, and placed downrange to provide ballistic coefficient information for your loads and testing.
Using Wi-Fi you can get your results from the unit without having to leave your seat and go downrange, at distances of at least 100m.
Specifications
- Accuracy: live shot calibrated from our master chronographs, <1fps @1,000fps
- Resolution: 0.1fps @1,000fps
- Sensor: Infrared - not affected by fluorescent or LED indoor lighting
- Rate of fire: 20/sec with autosave, 2,500/sec without autosave, tested @1,000fps
- Display: 1.5" Super bright removable OLED screen, or Super Bright LED shot indicator
- Shoot Window: 50mm x 65mm detection area
- Bulletproof: User provided/replaceable front protection (design provided)
- Environmental sensor: provides pressure and humidity readings
- Compact & lightweight: 500g unit weight, can be disassembled for storage
- Power: user provided 5v USB required, 1x18650 power supply will last ~6hrs
- Assembly required: Using a standard philips driver, the unit is assembled in <3min
- Range: Over 100m of Wi-Fi range
- Power Consumption: 180mA approx
- Mounting: Standard tripod mounting, additional side mounting tabs
- Outdoor Use: Unit MUST be placed in full shade
- Unit Pairing: Can be combined with another ExtremeBallistic, or NateChrony SteadyShot for ballistic calculations
- Connectivity: Standard Wi-Fi (2.4Ghz), and web broswer connectivity, NO INTERNET REQUIRED
Included with the NateChrony:
- The Chronograph: The thing you shoot through
- Sensor Covers: High/Low sensitivity sensor covers for indoor/outdoor use
- OLED Screen: Removable super bright 1.5" OLED display screen
- LED Indicator: Super bright LED with 300mm/1ft cable for remote shot idication
- The Software: NateChrony advanced software
- 1m USB Cable: Quality 1m long USB A/C to C cable
- Mini PH Driver: Small philips driver for sensor adjustment
- 2x Aim Cards: Two target cards for alignment, with stainless steel clamp
What you need to get up and running:
- Smart Phone/Tablet/PC: An up to date device less than 5years old that can connect to 2.5Ghz Wi-Fi, and can open a standard HTTP webpage with JavaScript
- Philips driver: A standard philips PH1 driver for assembly
- USB Power: Any quality 5v USB power supply, we recommend at least 5,000mAh
- Knowledge: It’s a more technical chronograph, you MUST have good working knowledge of Wi-Fi and your device
*Bulletproof: Users can use the design files provided to add the required frontal protection to the unit depending on their caliber.
