Add some smarts to your target!
Mount the NateChrony SmartTarget to the back of your existing targets, when the target is struck by an object & moves - the SmartTarget will detect the movement, register the shot, and based on the way your target moves - tell you approximately where the shot landed.
SmartTarget
The NateChrony SmartTartget has an inbuilt motion sensor that detects movement, by analysing this movement it can detect being hit, and also the possible location of that hit. Mounting to a free moving target such as a hanging gong is highly recommended - as it can freely move in left-right and up-down directions.
The SmartTarget can be mounted to any surface, and used to detect any object - airguns, firearms, baseball… If you need to detect movement and strike location, the SmartTarget is for you.
The features will be rapidly improving as we get customer feedback and develop additional features.
Features
- Mounts to any target with double sided tape, or screws
- Center hole on case to assist with accurate placement

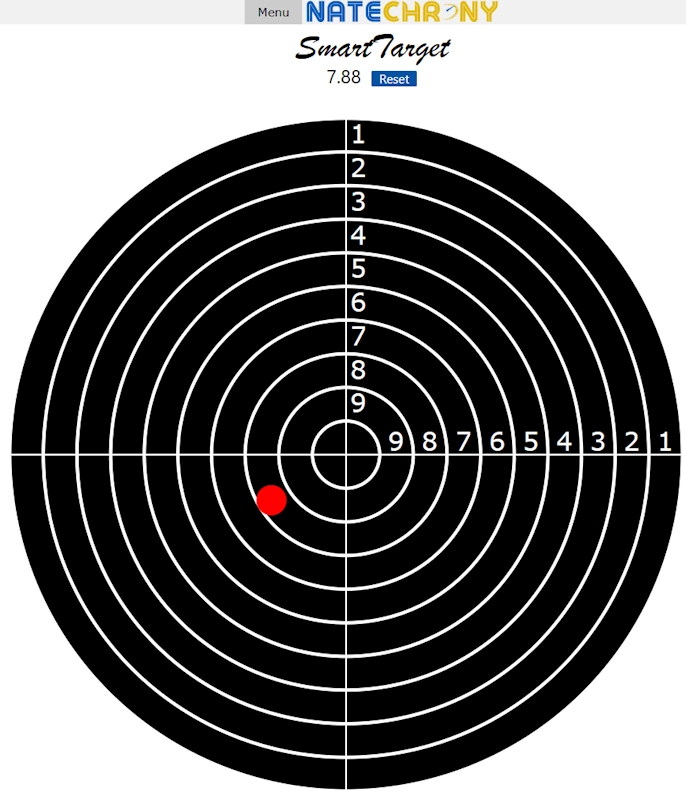

- Standard 10 ring target face display for shot placement
- Score display

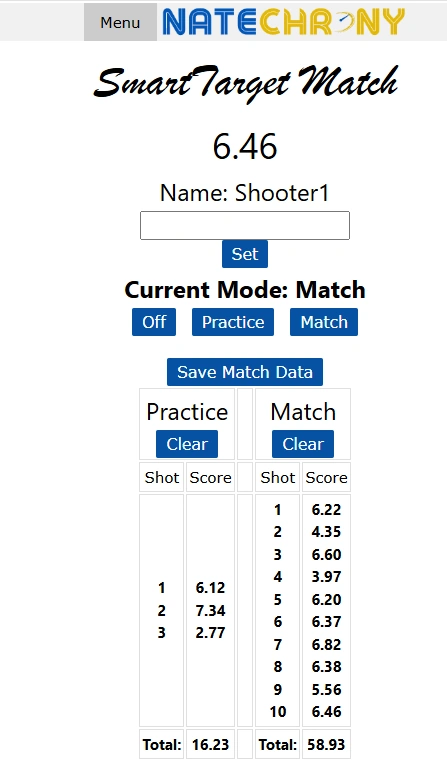

- Match Mode: Track and save multiple shots
- Calibration: can be adjusted to match every unique targets movement
- Sensitivity: can be adjusted for low power/long range, or high power/short range
- External Lights: ultra high brightness LED accessories available, so superb visibility at range
- Programmable Lights: we can program any lighting effects you can imagine
Accessories
- Short Range/Cross: 5 LEDs in a cross with 60mm spacing for 50-100m range
- Long Range LEDs: 4+2 or 10+2 LEDs that can be spaced at 600mm
- DIY Lighting Kit: 10+2 LEDs that you can wire together to create custom designs
Note: Accessories are optional
Requirements
You’ll need this stuff to use the SmartTarget - typically if you have a mobile phone you’re set!
- A target: when struck at the extremeties at the highest power, at the closest range - it should move/rotate approx 45 degrees
- A 5v USB power source: we recommend a quality USB power bank, 1x28650 will last ~8hrs
- Solar panel (recommended): add a small ~2-5W panel to charge while its in the field
- USB-C Cable: Choose a quality cable thats long enough to get the battery away from the hit zone, 1m minimum recommended
- If using a mobile phone/tablet, it should be less than 5 years old & up to date
- Working knowledge of your device, including browser and internet technologies
- Working knowledge of any additional security software installed on your device
- A device (phone/tablet) that can connect to a Wi-Fi hotspot, that does not have internet access
- A web browser that can connect to a HTTP (not HTTPS) web page and run JavaScript
- You can test your device here, ensure the page loads and displays a speed and power value, and when clicking on Menu - Shoot, you hear the speed and power readout
Specifications
- Accuracy: TBA - we can measure left, very left, middle, right, very right. We’ll have approved target specifications shortly, to help you setup your target best
- Outputs: Addressable LEDs (WS2812 compatible, 30mA max output), 5 additional programmable outputs - 3.3v logic @30mA
- Power: USB C, 160mA consumption
- Range: approx 65m when behind 5mm steel plate, long range version with external antenna >500m
Included with the SmartTarget:
- SmartTarget Module: the module that goes on the back of the target
- The Software: No apps to install or permissions required
